TE290
Measure the resolution or focus according to ISO 16505
Test chart TE290* is a line chart for determining the resolution (size A460) or the focus (size A1066) of a mirror replacement system described by ISO 16505.
ISO 16505:2015 (currently under review) describes the requirements and test procedures for the minimum safety, ergonomic, and performance requirements for Camera Monitor Systems that replace rearview mirrors of road vehicles.

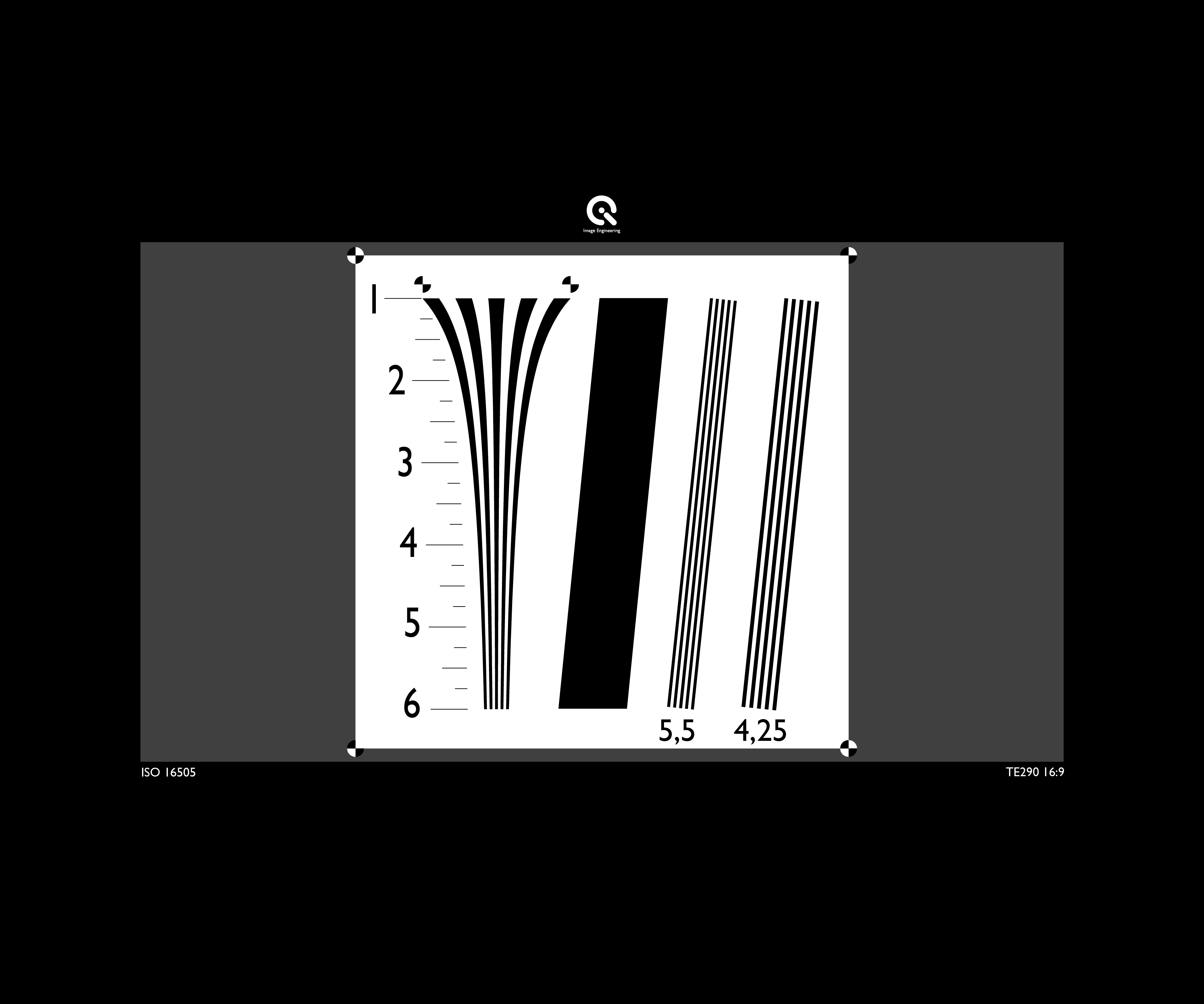

The chart layout includes four separate hyperbolic line structures for measuring image resolution or focus available in size A460 and A1066 respectively. This chart is only available as a reflective chart.
TE290 can be purchased individually or as a part of the ISO 16505 chart bundle. The bundle includes all of the relevant charts that are described in the standard for evaluating the performance of Camera Monitor Systems for road vehicles.
*Exact layout and dimensions may differ from image shown on the right.
| 材質 | 反射式 |
|---|---|
| 尺寸 | A460, A1066 |
| 長寬比 | 16:9 |
其他文件
Chart Sizes
Chart sizes
The test charts are available in the sizes listed below. Please note that some charts cannot be manufactured in all sizes due to technical reasons. Please do not hesitate to ask for additional information.
During production, specific regions of test charts are measured to qualify the production process or to create individual reference data accompanying a test chart additionally. Measured regions can be color or gray tones.
The measurement devices are calibrated regularly and proven before use. You can find further information in our reference data accuracy sheet.
Reflective
| Picture size w x h [mm] | Chart size w x h x d [mm] | ||
|---|---|---|---|
| 4:3 | 16:9 | ||
| A1066 | 800 x 600 | – | 1245 x 835 x 3.2 |
| A1066 | – | 1066 x 600 | 1400 x 835 x 3.2 |
| A540 | 540 x 405 | 540 x 303.75 | 600 x 500 x 3.2 |
| A460 | 460 x 345 | 460 x 258.75 | 600 x 500 x 3.2 |
| A444 | – | 444.4 x 250 | 600 x 500 x 3.2 |
| A360 | 360 x 270 | 360 x 202.5 | 500 x 400 x 3.2 |
| K360 | – | 360 x 202.5 | 390 x 271 x 2.1 |
| A280 | 280 x 210 | 280 x 157.5 | 365 x 305 x 3.2 |
| K280 | 280 x 210 | 280 x 157.5 | 334 x 271 x 2.1 |
| P280 | May vary in size with the chart layout | 334 x 271 x 2.1 | |
| K180 | – | 180 x 101 | 204 x 164 x 2.1 |
| K160 | 160 x 120 | – | 204 x 164 x 2.1 |
A charts (size 280/360/460) are mounted on aluminium plates.
A charts (size 1066) are mounted on aluminum composite panels (aluminum dibond).
K charts mounted on black polystyrene plates are only available in combination with the test chart folders
P charts are mounted on black polystyrene plates.
Transparent
| Picture size w x h [mm] | Chart size w x h x d [mm] | ||
|---|---|---|---|
| 4:3 | 16:9 | ||
| D280 | 280 x 210 | 280 x 157.5 | 360 x 280 x 4.6 |
| D240 | 240 x 180 | 240 x 135 | 320 x 290 x 4.6 |
| D240S | 240 x 180 | 240 x 135 | 360 x 280 x 4.6 |
| D205 | 205 x 153 | 205 x 115.3 | 253 x 202 x 3.5 |
| D120 | 120 x 90 | 120 x 67.5 | 155 x 135 x 4.0 |
| D35 | 32 x 24 | – | 50 x 50 x 3-4 |
D35 charts are either between glass plates or mounted in slide frames (glassless).
There are exceptions regarding mounting and size for special charts.
Suitable transparent charts for the following illuminators
| D280 / D240S | D240 | D205 | |
|---|---|---|---|
| Spherical transparency illuminator LE6/LE7 Lightbox illuminator LG3 Sony Pattern Box |
DNP standard viewer | Porta Pattern spherical transparency illuminator |
|
| With adapter | Spherical transparency illuminator LE6/LE7 Lightbox illuminator LG3 |
||
