Set of ISO-16505 Test Charts (6 charts)
The ISO-16505 bundle is made up six charts that are mentioned in various parts of the ISO-16505, Road vehicles — Ergonomic and performance aspects of Camera Monitor Systems standard.
This set of charts is available in three standard sizes: 2x, 4x and 5.5x. Select the ISO size you need based on the table below. The 2x size replicates the charts as closely as possible to what is described in the standard. The 5.5x is the maximum size Inkjet possible. Custom sizing is available upon request.
產品描述：此套遵照ISO16505標準。主要用於測試道路交通工具的後視鏡監視系統。主要包含了：色彩、棋盤格、灰度、18%灰度、70%灰度、SFR測試卡，可以使用 imatest軟件 進行分析。
此系列測試卡遵循ISO 16505 道路車輛 – 攝像監控系統的人體工程學和性能方面 – 要求和測試程序
iso 16505系列測試卡可用於測試評估成像系統的各項參數性能：灰階、白平衡、畸變、放大率、色彩還原等。可以使用 imatest軟件 進行分析。
Find more information on our Automotive Solutions page.
Details
The charts included in this bundle are for use in testing ISO 16505, Road vehicles — Ergonomic and performance aspects of Camera Monitor Systems. The specific charts are described below. Reference color measurements are available by request on a chart by chart basis. Please contact charts@imatest.com for more information.
產品特點：
1. ISO-16505-Color – 此顏色測試卡根據 X-Rite ColorChecker 使用八種顏色（R，G，B，Ye，Cy，Mg，黑色和白色）。色塊被安排成與圖像中心保持均勻的距離，並且在另一側具有互補色。背景為18％灰色。
2. ISO-16505-Gray18 – 此18％灰色卡是具有> 98％均勻度的單色調灰度圖。
3. ISO-16505-Gray70 – 此70％灰色卡是具有> 98％均勻度的單色調灰度圖。
4. ISO-16505-Grayscale – 灰度- 灰度圖在亮度測量標準的較早版本中概述。可以通過stepchart模塊進行分析。
5. ISO-16505-CB – 此高對比度（棋盤格）用於根據標準概述的規格測量失真和放大率。
6. ISO-16505-SFR – SFR測試卡由五個高對比度傾斜正方形組成，用於測量 MTF。
ISO-16505-Color – This color chart uses eight colors (R, G, B, Ye, Cy, Mg, black, and white) based on the X-rite “ColorChecker” chart as specified. The color patches are arranged to keep an even distance from the image center with complementary colors on the opposite side. The background is a diffuse ~18% gray.

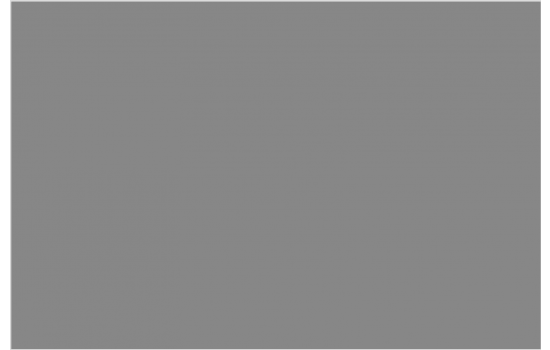

ISO-16505-Gray18 – This 18% gray chart design is a single tone gray chart with >98% uniformity.
ISO-16505-Gray70 – This 70% gray chart design is a single tone gray chart with >98% uniformity.

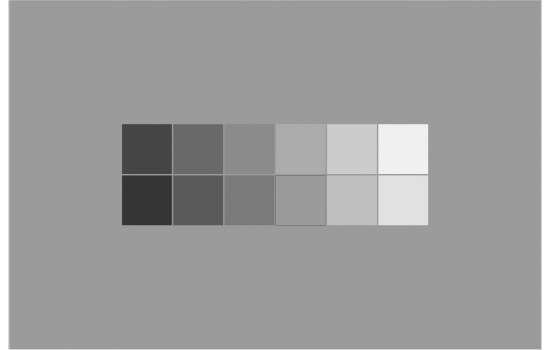

ISO-16505-Grayscale – The grayscale chart is outlined in an earlier version of the standard for luminance measurements. It can be analyzed by the stepchart module.

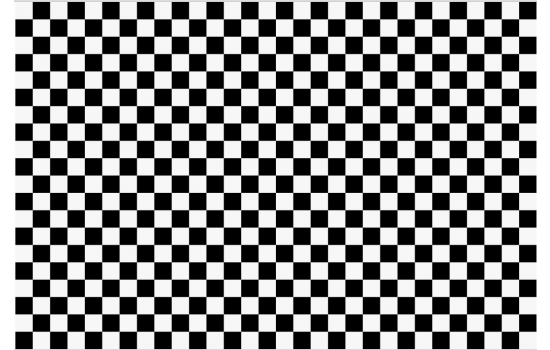

ISO-16505-CB – This high contrast ‘chessboard’ (checkerboard) target is for measuring distortion and magnification according to the specifications outlined in the standard.
ISO-16505-SFR – The SFR chart is made up of five high contrast slanted squares designed for measuring MTF of the system.
| Test Chart | 2x | 4x | 5.5x |
|---|---|---|---|
| ISO-16505-Color | 24” x 15.75” 610mm x 400mm |
48” x 31.5” 1219mm x 800mm |
66” x 43.31” 1676mm x 1100mm |
| ISO-16505-Gray18 | 36” x 24” 914.4mm x 610mm |
36” x 24” 914.4mm x 610mm |
36” x 24” 914.4mm x 610mm |
| ISO-16505-Gray70 | 36” x 24” 914.4mm x 610mm |
36” x 24” 914.4mm x 610mm |
36” x 24” 914.4mm x 610mm |
| ISO-16505-Grayscale | 24” x 15.75” 610mm x 400mm |
48” x 31.5” 1219mm x 800mm |
66” x 43.31” 1676mm x 1100mm |
| ISO-16505-CB | 24” x 15.75” 610mm x 400mm |
48” x 31.5” 1219mm x 800mm |
66” x 43.31” 1676mm x 1100mm |
| ISO-16505-SFR | 24” x 15.75” 610mm x 400mm |
48” x 31.5” 1219mm x 800mm |
66” x 43.31” 1676mm x 1100mm |
