eSFR ISO Chrome on Glass Target
This chart is produced with the highest precision process we have available. For more detailed information on the various processes by which we create our targets, please take a look at our Transmissive Chart Quality Comparison.
For ease of placement and removal, options include an acrylic frame sized for Imatest LED Lightboxes size B through D and Light Panels size A through D.
Chrome on Glass charts are uni-tone, have 10:1 contrast,
Details
| Plate Size | Active Area* | Thickness | SKU |
|---|---|---|---|
| 2.545 cm x 7.62cm (1″ x 3″) | 5 chart patterns | 1.6mm (0.06″) | ESFRCG-1×3-Multi |
| 5.09 cm (2″) | 29.568mm x 19.301mm | 1.6mm (0.06″) | ESFRCG-2-Enhanced |
| 5.09 cm (2″) | 29.761mm x 16.281mm | 1.6mm (0.06″) | ESFRCG-2-Extended |
| 10.18 cm (4″) | 78.336mm x 51.136mm | 1.6mm (0.06″) | ESFRCG-4-Enhanced |
| 10.18 cm (4″) | 74.847mm x 43.134mm | 1.6mm (0.06″) | ESFRCG-4-Extended |
*The active area is measured to the interior of the black borders of the pattern.

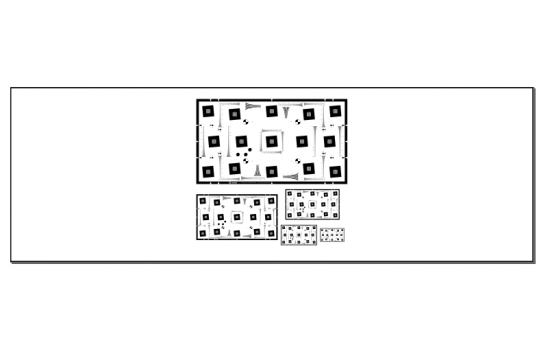

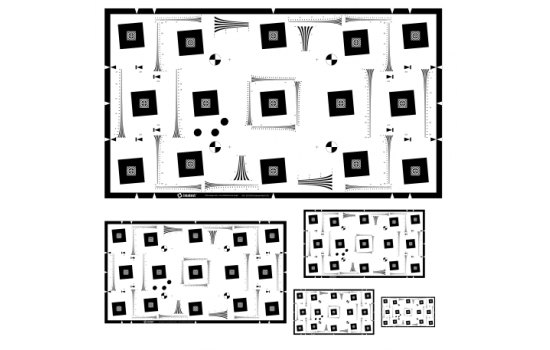

The 1 x 3″ Multi Slide includes five patterns:
22mm x 12.37mm (0.87″ x 0.49″)
11.86mm x 6.67mm (0.48″ x 0.26″)
7.904mm x 4.44mm (0.311″ x 0.17″)
5.27mm x 2.96mm (0.207″ x 0.12″)
3.51mm x 1.97mm (0.14″ x 0.08″)
